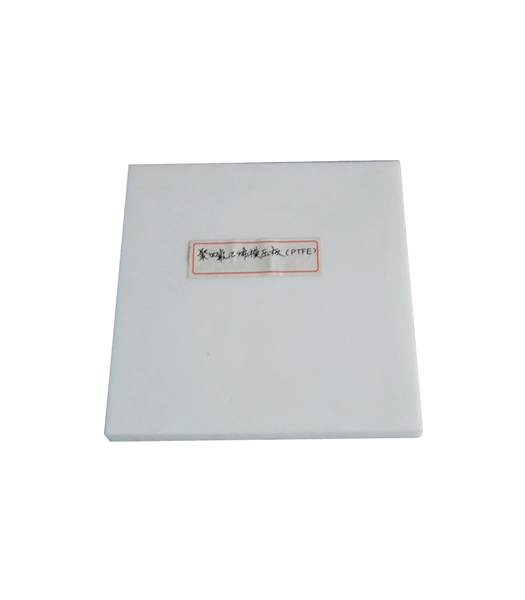

PTFE is divided into molded plate and turning plate two categories. The molded plate is made of PTFE suspension resin by molding and sintering; Turning plate is the blank of PTFE suspension resin formed by molding or hydraulic method and then turning or rotary cutting is worth the plate.
Product name | Specification(mm) | |||
Square plate(length) | Circular plate(diameter) | Thickness | ||
PTFE molded plate | Molded plate | ≦ 800 | ≦800 | 1-50 |
Big molded plate | 1000̶ 1600 | 1000-1800 | 3-30 | |
Note: Specific size is available as per customer's requirement | ||||
Product name | The implementation of standards | The technical performance index | Remarks | ||||
The proportion of | (Mpa) Tensile strength | (%)Crack elongation | (KV/mm) Witstanding voltage | ||||
Molded sheet | Ordinary type | ZGB33002 SFB-1 & SFB-2 | 2.10-2.30 | ≥15 | ≥150 | SFB-1≥10 | |
Bridge use | JT/T901-2014 | 2.13-2.20 | ≥30 | ≥300 | |||
Skived sheet | ZBG 33002 SFB-1 & SFB-2 | 2.1-2.30 | ≥15 | ≥150 | SFB-1≥10 | ||
Can be processed into the lining of chemical anti-corrosion equipment.
All kinds of reaction reactor tower section sealing material.
Anti-stick liner or conveyor belt.
Electrical insulation liner.
Dust removal equipment lining and friction coefficient material.
Bridge support sliding block material.
Ptfe molded plate is characterized by its excellent corrosion resistance, can withstand a variety of acids, alkali, organic solvents and other chemical corrosion, moisture, water absorption, has good aging resistance.
At the same time, it has a very low friction coefficient, making it a self-lubricating material, can operate without lubrication, reduce energy loss, extend service life.
Ptfe molded plate also has high temperature tolerance, can withstand high temperatures of up to 260℃, without any deformation and fracture. This makes it very widely used in high temperature environment, such as in petroleum, chemical, electronic, food and other industries, can play its excellent performance.
