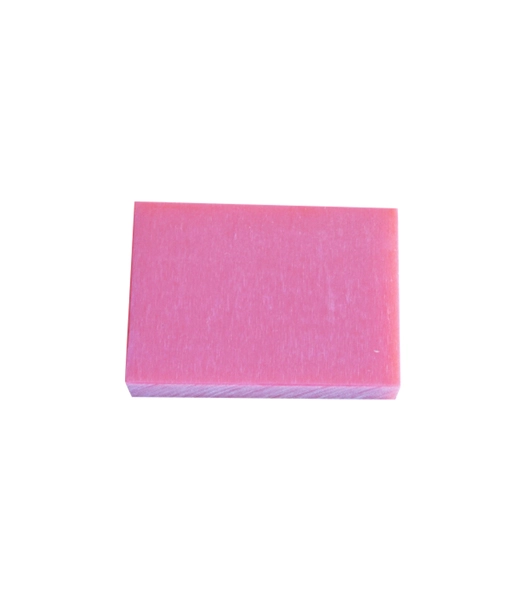

UHMWPE Extrusion Sheet is known for its unique combination of properties. It has a low coefficient of friction, making it ideal for applications where sliding and abrasion resistance are required. It also has excellent impact strength, chemical resistance, and can withstand extreme temperatures. Additionally, it has a high wear resistance, which makes it suitable for applications involving heavy machinery or equipment.
Indications name | Unit | Test method | Indicators |
Density | g/cm³ | ASTM1505 | 0.94 |
Fracture strength | Mpa | D638 | 42 |
Elongation at break | % | D638 | 350 |
Impact strength | Kj/m² | D256 | ≥100 |
Boards: have molded plate and extrusion plate two class.
The name of the project | Unit | The shape size(length*width*thickness) | Remarks | |
Moulded board | mm | 4200*1035(6-200) | ||
mm | 4200*1250(6-180) | |||
mm | 3150*2040(6-150) | |||
Extrusion board | mm | Width 113*thickness 3*unlimited length | ||
mm | Width1030*thickness 6*unlimited length | |||
