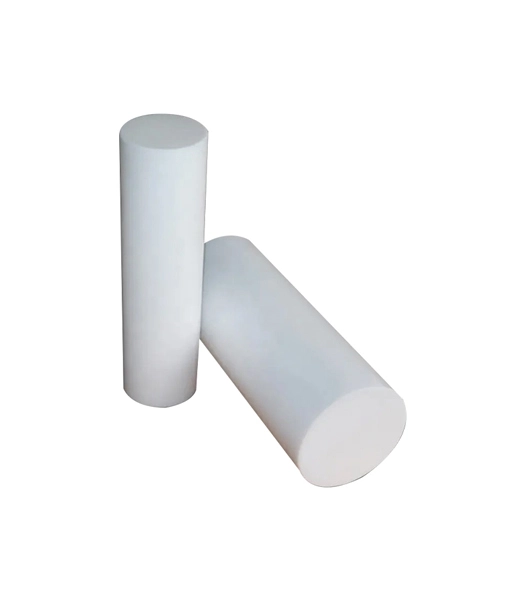

Molded PTFE rods are commonly used as machining stock for a wide range of chemical, electrical, and mechanical components, thanks to the exceptional performance characteristics of PTFE. To meet specific application requirements, various fillers can be added to modify the properties of PTFE.
As a professional PTFE rod supplier, Xinrui Plastic provides molded PTFE rods to numerous companies across diverse industrial sectors, including electrical, chemical, and mechanical industries. We maintain a substantial inventory of molded PTFE rods in various sizes to ensure prompt supply to its clients. Additionally, we also offer customization services to machine components according to your specific needs.
Products name | Specification(mm) | Remarks | ||
Diameter | Length | |||
PTFE bar | Molded rods | 16-200 | 100-300 | |
210-300 | ≦150 | |||
Hydraulic rod | 50-300 | 500-1000 | Outer diameter needs machine procesing | |
Extrusion rods | 20-80 | <2000 | The length can be customized | |
Product name | The implementation of standards | The technical performance index | Remarks | ||
The proportion of | Tensile strength (Mpa) | Crack elongation(%) | |||
Molded rods | ZGB33003 SFB-1 | 2.10-2.30 | ≥14 | ≥140 | QB/T 3626-1999 |
Molded pipe | Company standard | 2.15-2.25 | ≥15 | ≥150 | |
Hydraulic rod/tube | Company standard | 2.10-2.20 | ≥14 | ≥150 | |
Extrusion rods/tube | Company standard | 2.10-2.20 | ≥15 | ≥150 | |
PTFE rods and tubes are sintered with PTFE suspension resin after moulding or hydraulic pressing, or extruded with PTFE presintered disperse resin by plunger.
PTFE is a high performance polymer that can make various products owing to its versatile properties. Like other PTFE products, PTFE Molded Rods also have exceptional weather resistance, chemical inertness, heat resistance, and excellent electrical insulation.
PTFE molded rods can be processed into a variety of seals, gaskets.
Electrical insulation electrical equipment parts.
PTFE molded rods can also make a variety of chemical anti-corrosion, high temperature resistance or anti-stick parts or products.
In the field of electronics, PTFE moulded rod is often used in semiconductor manufacturing process chip packaging, electronic components protection and other aspects. Because PTFE molded rod has good high temperature resistance and corrosion resistance, it can improve the reliability and stability of electronic products.
In the field of chemical industry, PTFE molded rod is widely used in chemical reactor, storage tank, pipeline, pump and other equipment. Because PTFE molded rod has good corrosion resistance, it can withstand the corrosion of various strong acids, strong bases, organic solvents and other chemical media, so as to ensure the service life and safety of equipment.
In the automotive field, PTFE molded rod is often used in the sealing and lubrication of automotive braking system, engine, steering system and other components. Because PTFE molded rod has good high temperature resistance and corrosion resistance, it can effectively reduce the wear and failure of automobile parts and improve the reliability and safety of automobiles.
In the field of machinery, PTFE molded rods are often used in mechanical seals, bearings, sliding rails, guides and so on. Because PTFE molded rod has good non-adhesion and wear resistance, it can effectively reduce the friction and wear of mechanical parts, so as to improve the service life and efficiency of machinery.
As one of the leading PTFE plastic manufacturers, Xinrui Plastic is well-equipped to manufacture a wide range of PTFE and UHMWPE products for various industrial needs. Whether you need PTFE Molded Rod, polytetrafluoroethylene sheets, PTFE thin film, PTFE slide plate, carbon graphite filled PTFE, or PTFE molded tube, you can trust our company for product quality and order quantity.
