Our company nylon products are divided into MC casting nylon and extrusion nylon according to different processes.
Nylon varieties are PA-6, PA66, PA1010 and so on. MV nylon molecular weight up to 3.5-7.0 ten thousand, using different process equipment and mold, can process the corresponding requirements of the products.
Species | Rod(mm) | Tube(mm) | Plate (mm) | ||||
Diameter | Length | Outer diameter | Wall thickness | Length | Wide | Thick | |
Mc Nylon | 30-500 | 300-500 | 40-500 | ≥10 | ≦4000 | 1000 | ≥ 5 |
Extruded nylon | 6-250 | 1000 | |||||

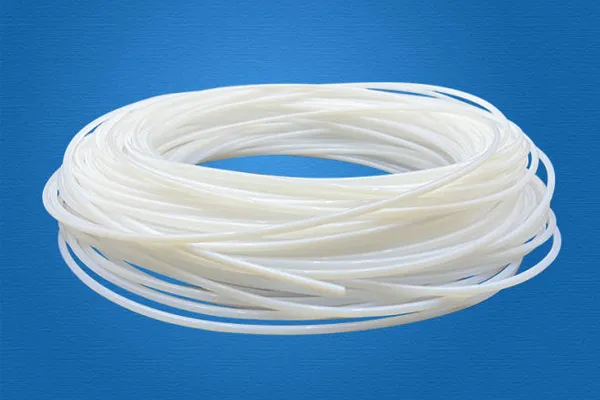

Nylon hose | 6-14 |
Name | unit | MC nylon | PA1010 |
Density | g/cm³ | 1.12-1.14 | 1.05 |
Tensile strength | Mpa | ≥80 | 50 |
Elongation | % | 100-300 | 100-250 |
Brinell hardness | Kg/mm² | 21 | 17.2 |
The rate of water absorption | % | 0.9 | |
The coefficient of friction | 0.23 | ||
The dielectric constant | 3.3 | 3.6 |

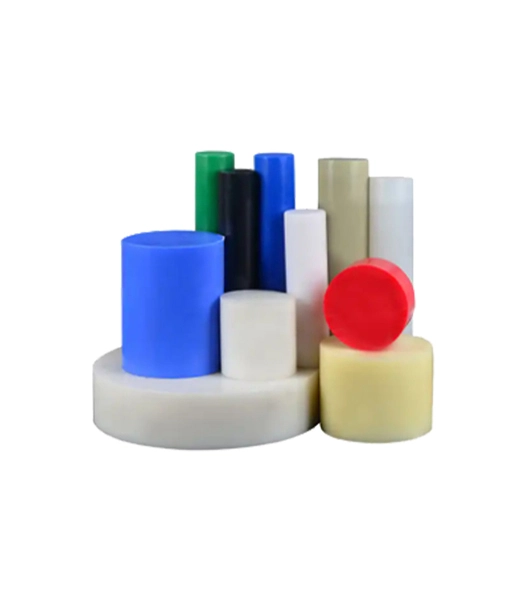

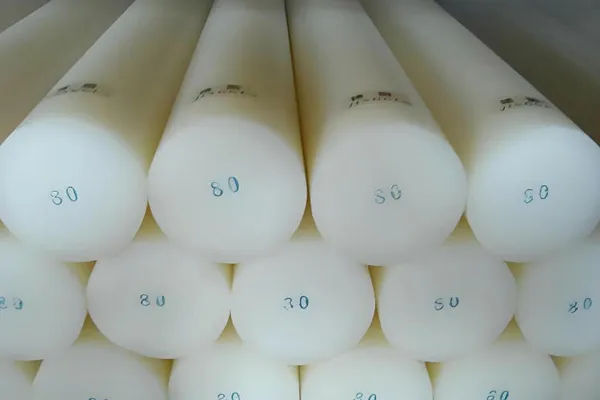

Nylon rod is an important engineering plastic, which can replace the wear-resistant parts of mechanical equipment, and replace copper and alloy as the wear-resistant parts of equipment. It has good toughness, strong wear resistance, oil resistance, seismic resistance, good tensile and bending strength, and has the characteristics of small water absorption and good dimensional stability, so it is used to process a variety of wear-resistant high-strength parts.
Nylon can be used for large gera, worm gera, shaft sleeve, a large sealing surface, a guide ring, a guide rail, a slider of hydraulic gate, rolling bearing retainer, etc.
