PTFE surface itself is not adhesive, such as want to bond and other substances must need one side and two sides after Nana chemical treatment, and rubber, metal, and other substances bond, in special use, make up for the non-adhesive performance of polytetrafluoroethylene products.

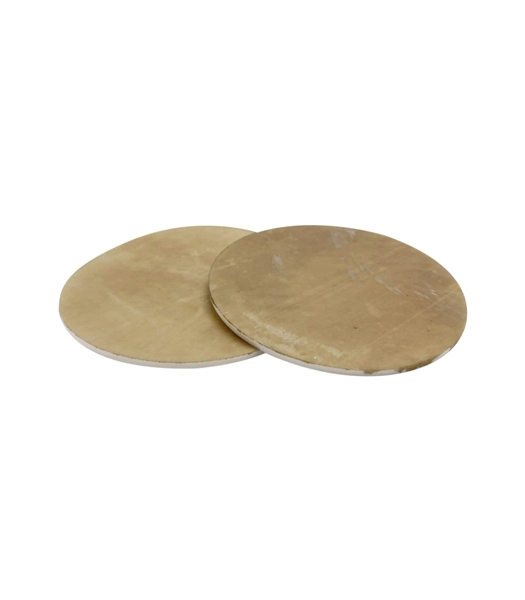

PTFE nai sodium polytetrafluoroethylene nai sodium surface treatment processing Teflon sodium bonding, PTFE -PTFE nai sodium surface treatment, PTFE tetrafluoroethylene surface is not adhesive, to metal or other substances must be bonded after sodium treatment, after treatment with rubber, metal, plastic, wood, non-metal and other substances bonding. Sodium method - mainly through corrosion liquid and PTFE tetrafluoroborate, strip, film surface chemical reaction, pull off part of the fluorine molecules on the surface, this is left on the surface carbonization layer and some polar groups, so as to get activated tetra fluoro fluoride, tetrafluoroPTFE after sodium increase its polarity and surface tension, PTFE tetra fluoro fluoride surface after sodium coffee color.
Product name | Specification(mm) | |||
Square plate(length) | Circular plate(diameter) | Thickness | ||
PTFE molded plate | Molded plate | ≦ 800 | ≦800 | 1-50 |
Big molded plate | 1000̶ 1600 | 1000-1800 | 3-30 | |
PTFE skived sheet | Skived sheet | Width of cloth ≦600 | 0.5-2 | |
Big skived sheet | Width of cloth: 600-1500 | 0.5-5 | ||
Note: Specific size is available as per customer's requirement | ||||
PTFE sheet is divided into 2 kinds: molded sheet and skiving sheet.PTFE moulded sheet is made of suspension resin by moulding and sintering.PTFE skiving sheet is turned with an embryo which is formed by moulding or hydraulic pressing.
Product name | The implementation of standards | The technical performance index | Remarks | ||||
The proportion of | (Mpa) Tensile strength | (%)Crack elongation | (KV/mm) Witstanding voltage | ||||
Molded sheet | Oridinary type | ZGB33002 SFB-1 & SFB-2 | 2.10-2.30 | ≥15 | ≥150 | SFB-1≥10 | |
Bridge use | JT/T901-2014 | 2.13-2.20 | ≥30 | ≥300 | |||
Skived sheet | ZBG 33002 SFB-1 & SFB-2 | 2.1-2.30 | ≥15 | ≥150 | SFB-1≥10 | ||
Heat resistance
can work stably from -180℃ to +260℃.
Stickiness
After surface treatment, etched PTFE can be glued to other materials, such as rubber, metal, plastic, etc.
Good mechanical property
No deformation, low friction coefficient.
High Lubrication
Lower friction coefficient in solid material.
